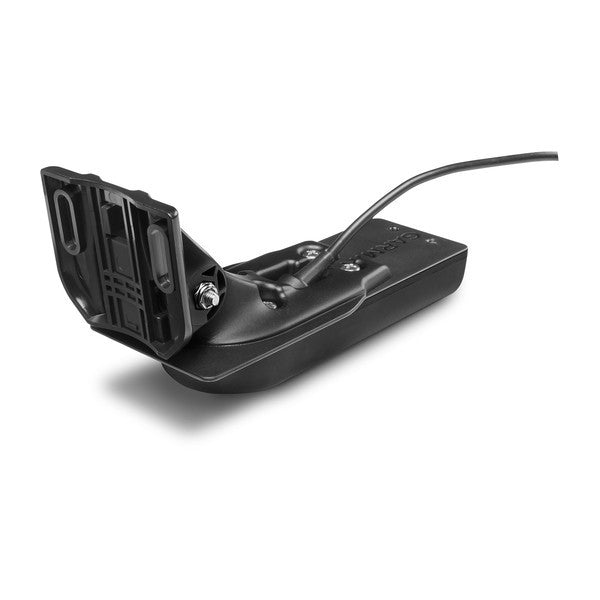

Garmin GT54UHD-TM Ultra HD Transom Mount Transducer

Garmin GT54UHD-TM Ultra HD Transom Mount Transducer

Regular price $369.99 USD
Regular price Sale price $369.99 USD
Sale Sold out
Shipping calculated at checkout.

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12909-00
  • One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
  • High wide CHIRP traditional sonar provides remarkably clear target separation and definition
  • See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar
  • Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts
  • Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’

The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.

Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

1For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos

Specifications
Frequency
Traditional CHIRP CHIRP High Wide (150-240 kHz)
Ultra High-Definition ClearVü 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü 1.2 MHz (1,200 kHz), CHIRP range: 1,080-1,230 kHz
SideVü 455 kHz, CHIRP range: 425-485 kHz
Power
Traditional CHIRP 350 W
Ultra High-Definition ClearVü 350 W
Ultra High-Definition SideVü 350 W
SideVü 350 W
Beamwidth
Traditional CHIRP Adjustable from 16° to 24° in 1° steps
Ultra High-Definition ClearVü 0.94° x 60°
Ultra High-Definition SideVü 0.64° x 52°
SideVü 1.62° x 50°
Maximum depth
Traditional CHIRP 800’
Ultra High-Definition ClearVü 200'
Ultra High-Definition SideVü 125' to each side; 250' total, at a maximum depth of 30'
SideVü 500' to each side
Other
Sensors Depth and Temperature
Number of pins 12-pin (orange connector)
Cable length 20 ft.
Supported deadrise/Transom angles 0°-70° degree transom

What's in the Box:
  • GT54UHD-TM transducer
  • Transom mount
  • Trolling motor mount
  • Mounting hardware
  • Documentation
